An empty pack may show generous openings yet cool unevenly after loading. Fruit, labels, adjacent packs, and carton walls can obstruct the fruit packaging airflow that looked sufficient on a drawing.
Hole count alone does not answer the buyer's question: can cold air pass through the complete loaded packaging system without bypassing the fruit?
Quick Answer
What Forced-Air Cooling Means for a Buyer
Forced-air cooling uses fans and a pressure difference to pull cold air through fresh produce. The fan creates airflow, while packaging materials guide or restrict heat transfer. Vent holes alone cannot remove heat.
A short, open route can cool more evenly than many poorly aligned holes. Air takes the path of least resistance, so gaps around a carton may let cool air bypass the fruit. Cooling specialists call this short-circuit airflow.
Start with the Real Cooling Process
First determine whether the operation cools fruit before packing, after retail packing, or at both stages. The specification may describe fruit as pre cooled after treatment in open field crates, or it may require forced-air precooling after the retail pack closes. Room cooling, hydrocooling, and forced-air cooling impose different requirements on fresh fruit and vegetables.
Record the starting fruit-pulp temperature and air temperature, target condition, carton arrangement, pallet direction, and available time for reducing the temperature. If the customer changes the cooling method, carton, net weight, or pallet pattern, repeat the ventilation review.
Test Fruit Packaging Ventilation After Loading

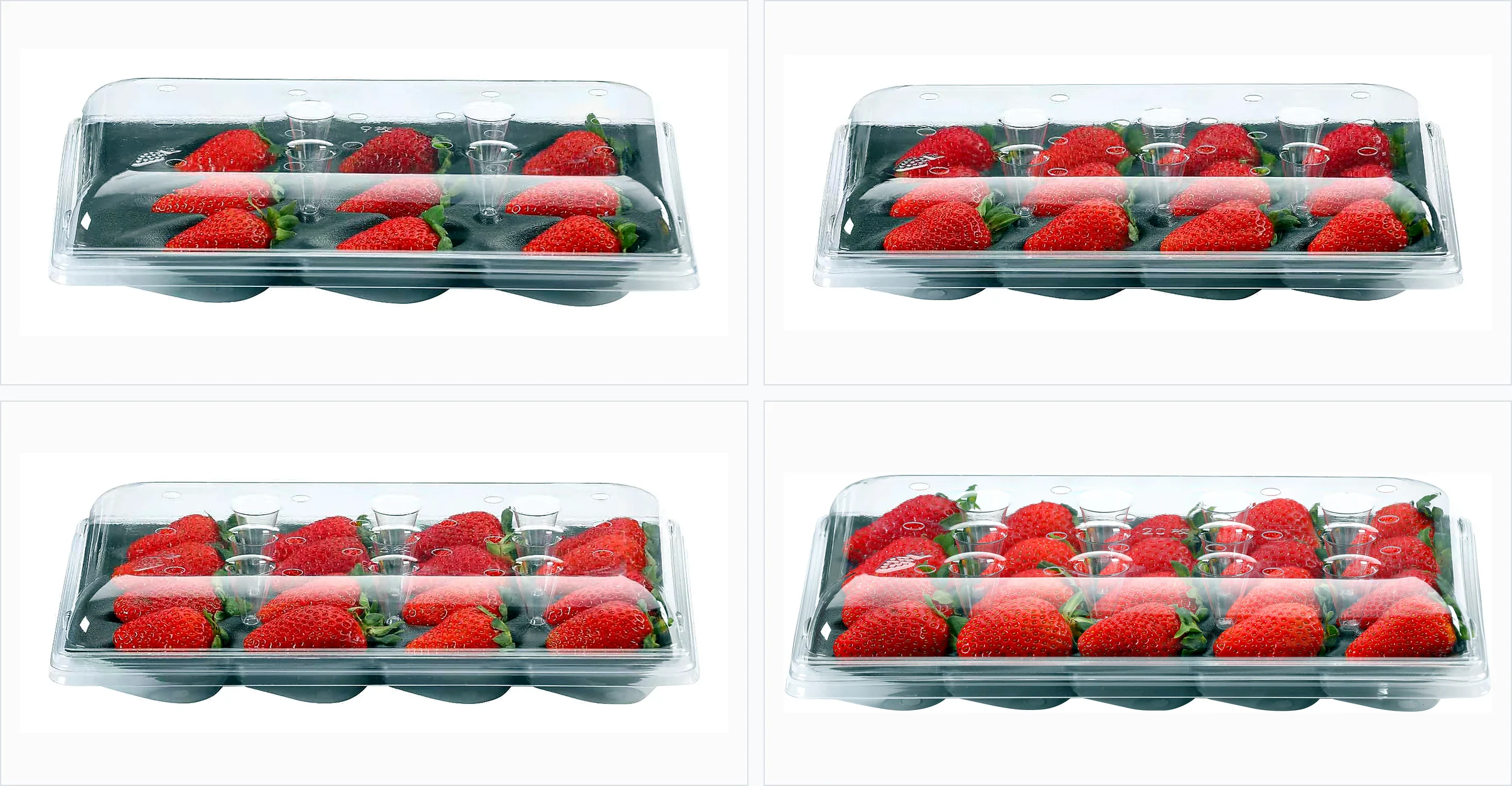

Load the declared sale weight with representative small, medium, and large fruit. Check the layers and positions of leaves, stems, absorbent pads, labels, paper sleeves, and any gel packs specified for storage and transport. These accessories may cover base vents, while dense fruit can close internal air spaces even when each molded vent remains visible.
Arrange neighboring packs exactly as they will sit in the case. An adjacent pack can block side vents; stacking or a display tray can cover top openings. The test should reproduce routine packing, not a lightly filled demonstration sample.
Check Ventilated Fruit Cartons and Pallet Alignment

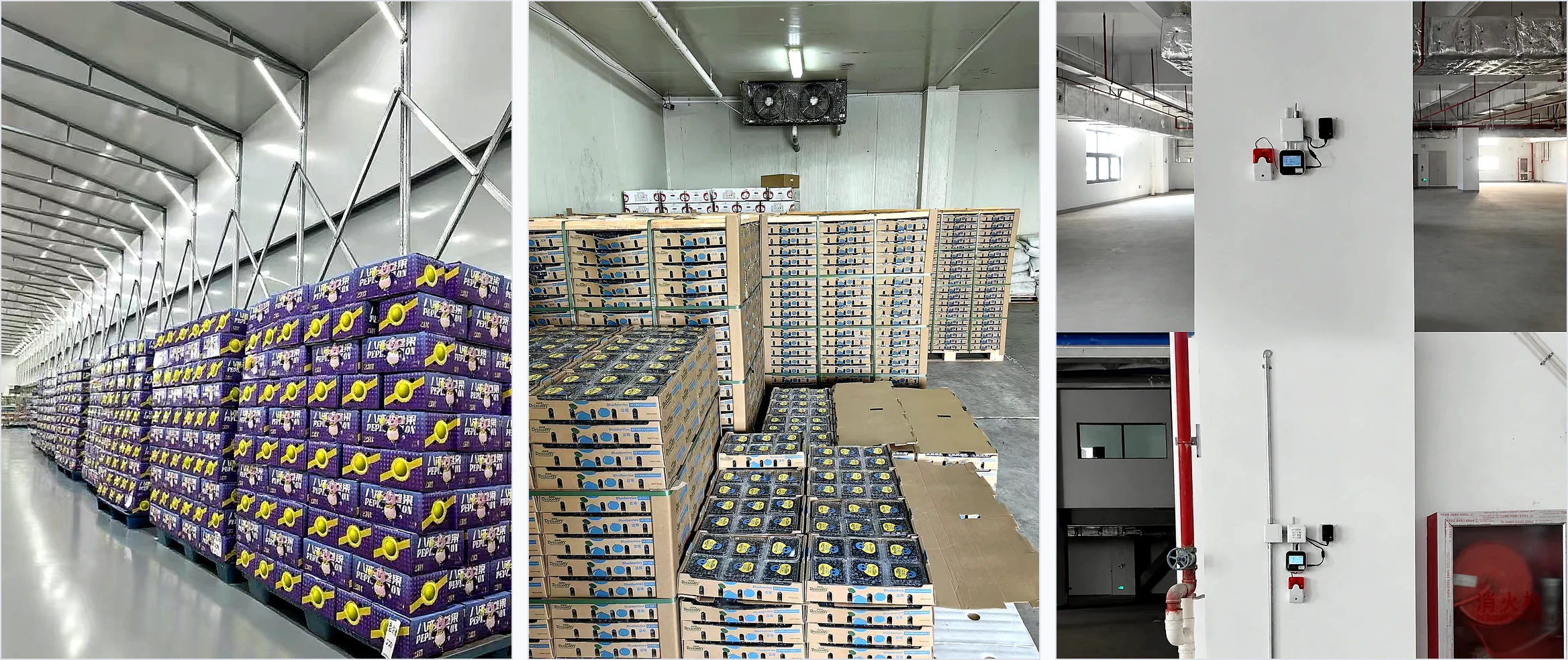

The retail pack, ventilated fruit cartons, and pallet must form one connected path through the cold-chain packaging system. Carton windows should align with exposed retail-pack openings, while load-bearing corners retain enough strength for stacking. Stretch wrap, corner boards, adjacent pallets, and tight case packing can block the inlet or outlet.
Compare cartons near the fan with cartons at the warmest expected pallet position. One cold outer case cannot prove uniform cooling. Ask the packhouse or cold-chain specialist to approve the temperature measurement plan and cooling time. The packaging supplier should document the tested pack and carton version.
Do Not Trade Protection for More Holes
Larger or additional openings may improve air access, but they can weaken rims, locks, sidewalls, or carton panels. Across the supply chain, poorly placed edges may touch fruit and create damage. Adding thickness later can increase cost without correcting the original airflow path.
The practical target combines connected airflow with secure closure, fruit clearance, carton strength, visibility, and packing-line reliability—not maximum open area.
A Six-Step Buyer's Validation
- Confirm the cooling method, route, sale weight, fruit-size range, and pack version.
- Load the declared sale weight with representative fruit and the final label, sleeve, pad, liner, or specified gel packs.
- Place the approved retail units in the intended shipping carton.
- Build the real pallet pattern and check that inlets and outlets stay open.
- Monitor representative warm locations and inspect fruit after the defined cooling cycle.
- Repeat affected checks after any change to fruit grade, weight, accessories, carton, or stacking.
Field Evidence: Empty Packs Can Give the Wrong Answer
In A-BOX Packaging field work, apparent vent area can shrink after teams fill and box the packs. Paper sleeves may cover side openings, adjacent packs may meet edge to edge, or the carton wall may sit against a vent. This common food industry problem does not support a universal hole count. It shows why buyers should verify produce cooling in the loaded pack-carton-pallet system instead of approving the empty retail pack.
What Packaging Cannot Fix
Packaging supports heat removal and temperature control, but it cannot correct warm starting fruit, delayed precooling, insufficient refrigeration, or cold-chain breaks. Anti-fog treatments improve lid visibility; they do not remove field heat or prevent condensation caused by temperature changes. Validate the complete process before claiming that a format is extending shelf life.
Frequently Asked Questions
Does a pack with more holes always cool faster?
No. The position of each hole, fruit loading pattern, carton windows, pallet direction, and bypass airflow may influence cooling more than the visible hole count.
When should the packhouse cool fruit: before or after retail packing?
The fruit and operation determine the sequence. Cooling before packing exposes more surface area; cooling after packing may simplify workflow. Validate the chosen process with a postharvest or cold-chain specialist.

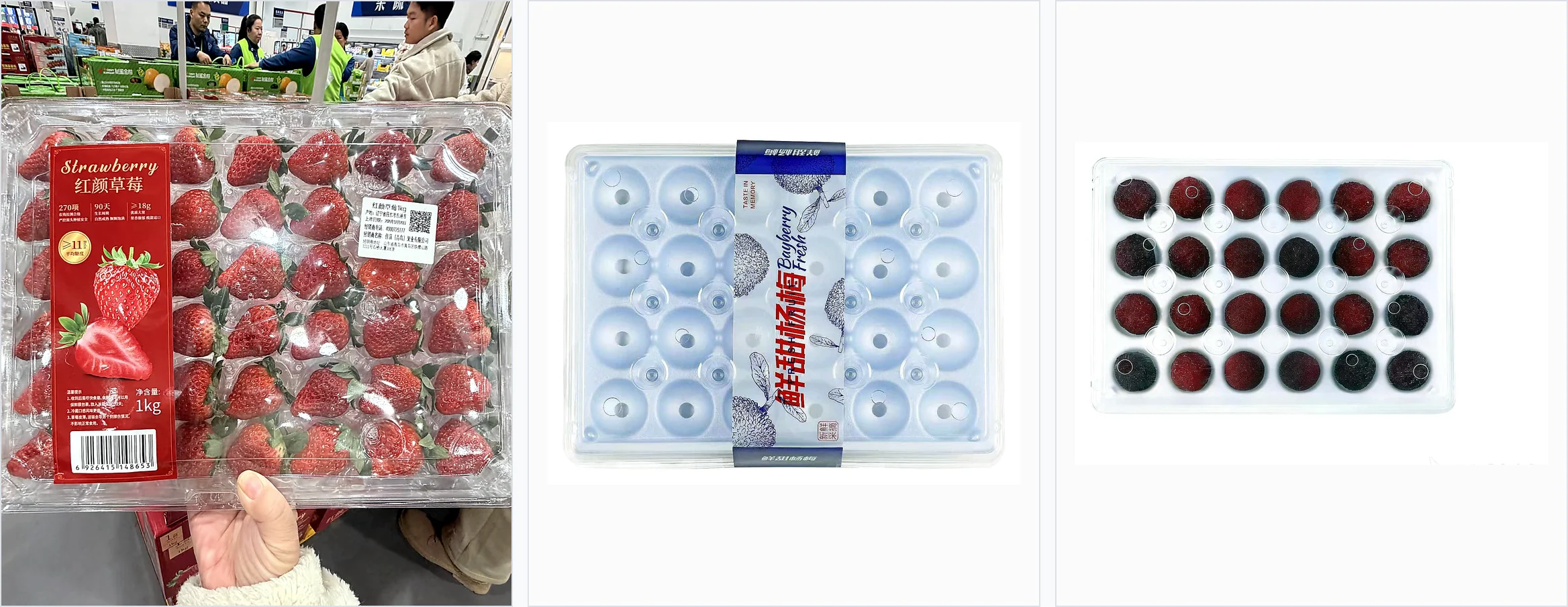

Can labels and paper sleeves affect cooling?
Yes. Test the final artwork size and placement because accessories can cover vents or redirect air away from the fruit.
When should a buyer request a new vent pattern?
Request a change only after the loaded system shows a repeatable problem with airflow or produce cooling. First inspect carton alignment, accessory placement, packing, and pallet configuration.
Conclusion
Treat fruit packaging for forced-air cooling as part of the complete cold-chain packaging system. Define the cooling process, test representative fruit at sale weight, and align the retail pack with ventilated fruit cartons and the pallet. Approve changes only against recorded evidence for airflow, strength, temperature control, and handling.
